Eagle XV – In Vacuum X-Ray

In Vacuum High Energy CCDs with a range of custom options


Introducing a high energy direct X-Ray In Vacuum version one of the most sensitive CCD cameras in the World. The Eagle XV is available in a range of options including sensor resolution, sensor type, cooling and feedthrough options – including trigger, liquid, power and CameraLink. This freedom of choice offers cameras to meet your exact needs.

The EAGLE XV camera features:

  • Choice of sensors, BN-DD and BN – Select the best QE for your application
  • Active / Passive cooling down to -80°C – Minimizing noise with Raptor cooling technology
  • Compact platform for In-Vacuum operation – Ideal for OEM integration with vacuum pressure <= 10^-5 mbar
  • Full range of Accessories – Including vacuum feedthroughs, cables, tubing etc
Optional Accessory Part Number Notes
Power Feedthrough RPL-PFC 19-way hermetic bulkhead feedthrough; 3m, 19-way, in vacuum cable
CameraLink Feedthrough RPL-CLFC MDR-MDR Feedthru Plate; Cameralink Cable 3m MDR to MDR
KF40 Liquid Feedthrough RPL-DN40KF-WFC KF40 flange with 2-off ¼" pipes, terminated with swagelok fittings
2.75" CF Liquid Feedthrough RPL-DN40CF-WFC 2.75" CF flange with 2-off ¼" pipes, terminated with swagelok fittings
KF40 Trigger Feedthrough 2 SMAs RPL-DN40KF-TFC KF40 flange with 2-off female SMA to SMA feedthroughs;
2.75" CF Trigger Feedthrough RPL-DN40CF-TFC 2.75" CF flange with 2-off female SMA to SMA feedthroughs;
Air Side Water Tubing RPL-WTUBE-XV Includes tubing and connectors. Stainless Steel Hose Connector, 1/4 in. Tube Adapter, 1/4 in; 5mm ID Flexible PVC Tubing (2m length);
EPIX EB1 frame grabber RPL-EPIX-EB1
EPIX XCAP Std software RPL-XCAP-STD
CameraLink Cable (2m) RPL-CL-CBL-2M Longer Camera Link cable available.
Mini PC with XCAP Std and frame grabber RPL-PC-EL1
Thermoelectric Water Chiller Unit RPL-CHILLER Recommended coolant flow rate >0.5l/min & cooling capacity >100W @ 20°C.

Typical Uses:

  • X-ray imaging
  • X-ray microscopy
  • Thin films and nanofibers
  • X-ray plasma diagnostics
  • Holography and lithography
  • CameraLink, Fibre Optic Comms, GigE and USB2/3.

    Raptor offers a selection of interfaces including CameraLink, Fibre Optic Comms, GigE and USB2/3.

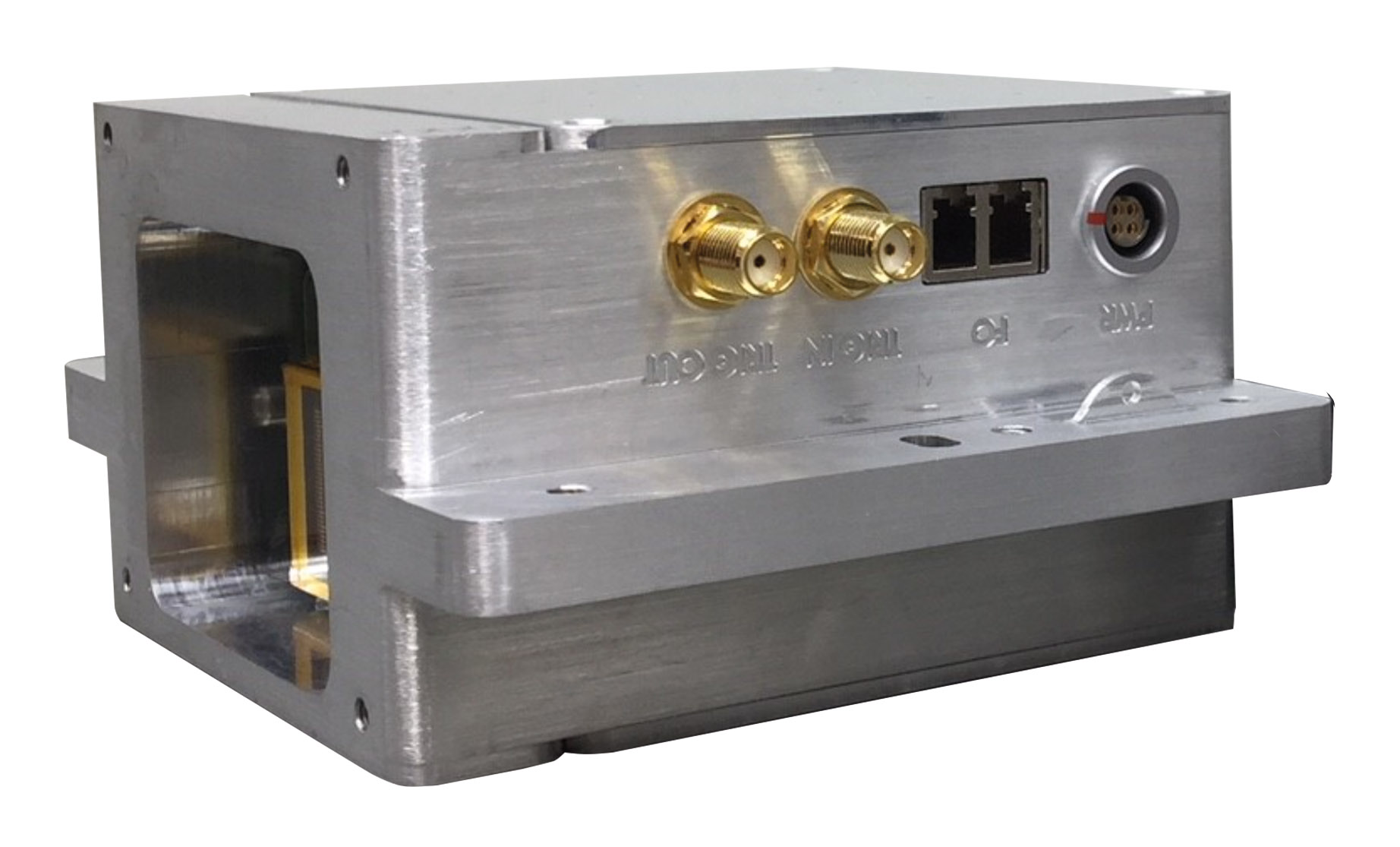

  • Raptor In Vacuum Direct X-Ray camera

    Raptor In Vacuum Direct X-Ray camera
